2019-01-20

Qudio Player

An easy-to-use music player for children based on the Raspberry Pi Zero and the JBL On Stage IIIp (again)

In spring 2016 I finalized the "Musikrakete", an MP3 player that our boys could operate without assistance. Later on, there was a second version. This is the third version, with all of the improvements I came up with during the last three years. It is easier and cheaper to build, the case is way smaller and much more robust and by switching to volumio the player now supports remote control from the phone and streaming services like Spotify. This is all combined with the existing features like playing MP3s from the local network and, most importantly, being easy to use even for small children. So if your children love music and audio books just like mine, this might be a project for you.

The Idea

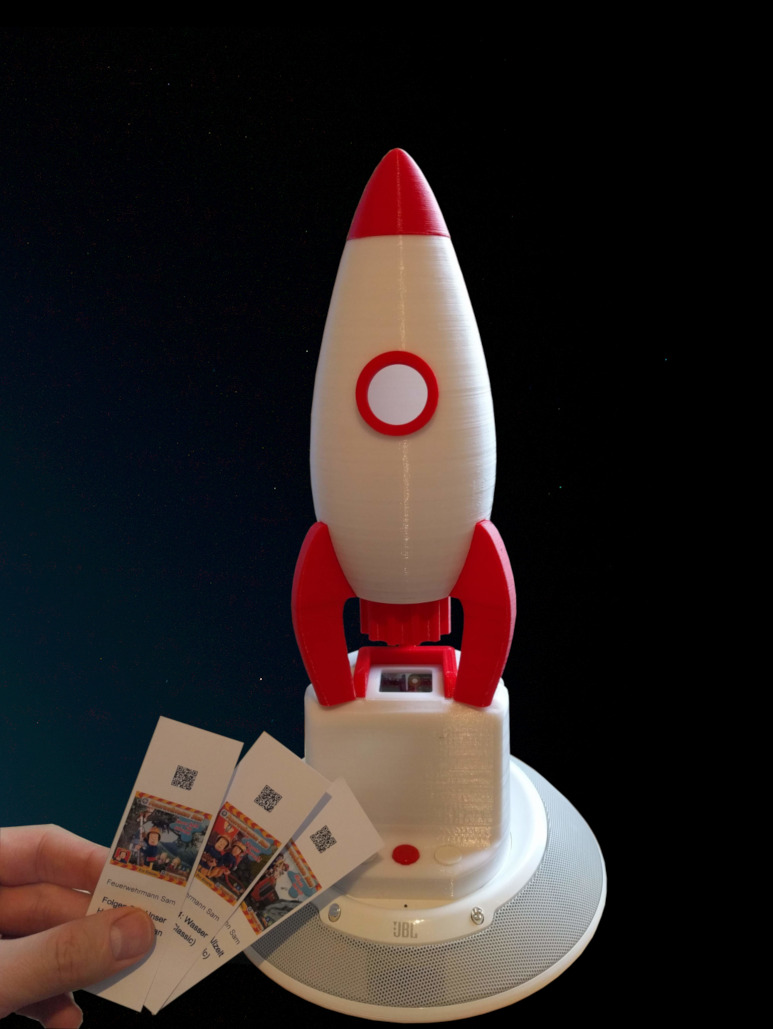

The Qudio player (with the additional rocket). The QR cards are placed on the window on top of the case, where they are detected by a photo sensor that triggers the recognition process. After the code has been read by the webcam, the stream or MP3s it point to start playing.

This project started in 2016, when Anica asked me if buying a hörbert MP3 player would be a good idea. At the time our boys wasted two to three CDs every week, trying to get some music out of the small player in their room. And the player in the living room also seemed to reach its end of life pretty soon due to their enthusiasm. Still I wasn't too sure about this hörbert thing. In order to get new files on the SD card of the player, the case had to be opened, the navigation with 11 buttons seemed a little confusing and a single speaker operated with four batteries also did not seem promising to me.

I had seen a project description of an MP3 player for small children shortly before: A Raspberry Pi mini computer, connected to a webcam and speakers, reads QR codes and plays the respective track or playlist. So this was what I suggested and to my surprise it was considered a better solution right away. And I had a project.

As good as the project description seemed to be, I wanted to make some improvements on the original design: The player should detect the QR automatically, it should have buttons for play/pause and skipping and all components should be put together in a single case. Most importantly, the MP3 files should be delivered directly from our home server. No SD card replacement needed.

Since we had an old JBL On Stage IIIp speaker lying around that wasn't used anymore due to its outdated iPhone dock connector, I decided to use this as a base. After playing around with Onshape, soldering and programming for three months, I had the Musikrakete ready by end of March 2016. It was a huge success with the boys and has been in heavy use ever since.

Over the last years I came up with some improvements on the original design and created a second version. But I always had some things in the back of my mind that I wanted to make better about both the hard- and the software and when the little brother moved into a room of his own, I knew it was time to bring all that to life. So this is the smaller, better and cheaper third version. The rocket on top is optional, by the way. But little brother would never have accepted a player that did not somehow include a rocket, since the original, rocket-shaped design is still used by the older one.

PiPlayer 3.0: Qudio

This third version now relies on volumio which can play music from streaming services like Spotify Premium or LastFM, has a nice web interface and does most of the configuration for us. The case is much smaller than before, which makes it sturdier and easier to print. The electronic parts are all easily obtainable standard compontents and even cheaper than before. Again, it is built on top of the JBL On Stage IIIp speaker, that can still be found on ebay for little money and provides a perfect base for a player like this.

The main component is now a Raspberry Pi Zero W, that can be run off the dock connector without an additional power source. I replaced the Pimoroni PHAT DAC with a dirt cheap audio module based on the same chip. The IR sensor that detects the QR cards is now a ready-made module which makes assembly easier. The buttons have been replaced by the ubiqitous standard components that come with every Arduino starter kit.

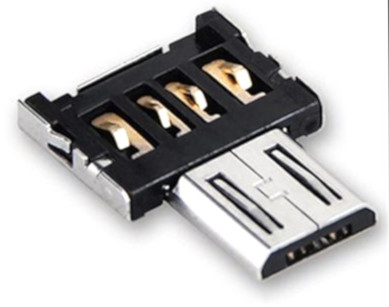

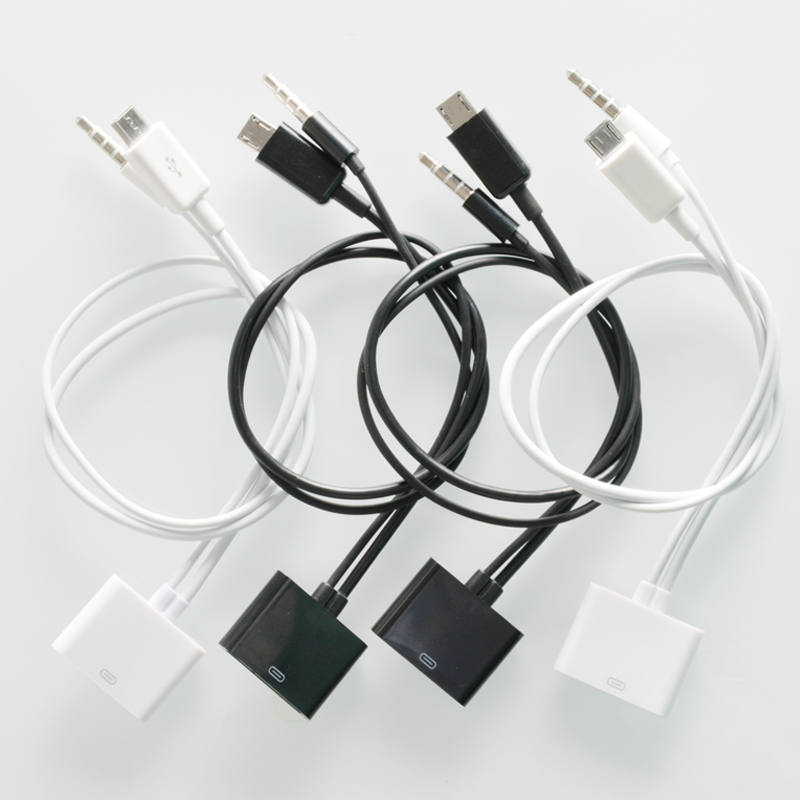

Parts list

deactivate microphone?
12 mm caps?
acrylic glass --> size?

Assembling the Components

Mounting the Base

In order to mount the case on the JBL, we have to disassemble the speaker and drill some holes. The screw in the center is hidden in the battery case, while the eight others are hidden under the rubber pads. Just peel them off carefully, we can glue them back on later.

IMG_20181211_094955_cr

Wiring

Audio Module

Test 1, 2, 3

Buttons

Sensor

LED

Software Installation and Configuration

Volumio

Python Script

Configuration und Test

QR Cards

What's Left

If you have any questions or improvements please send me an e-mail to tliero@gmx.net.
